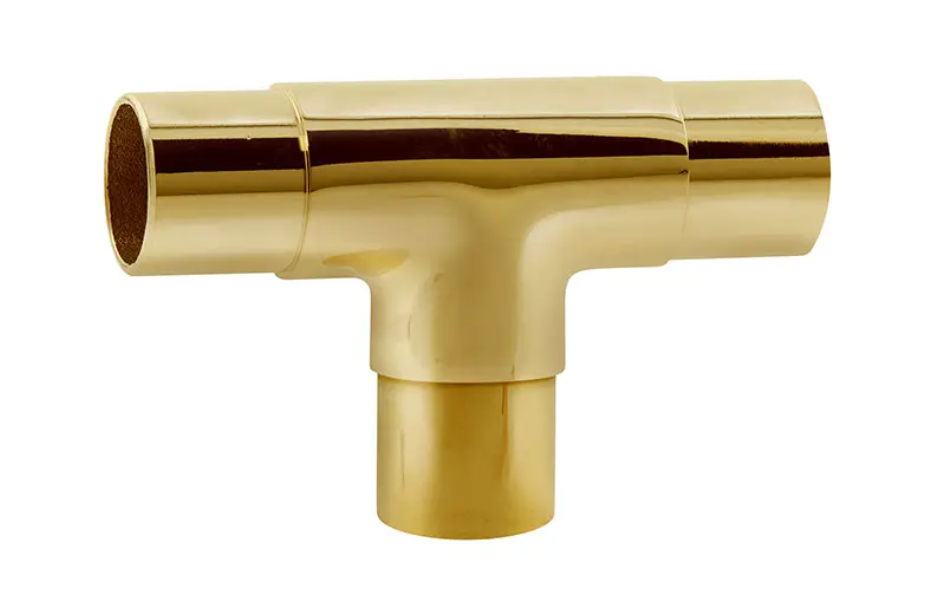

180 degree Flush T Elbow for 1.5 inch O.D. Tubing, Polished Brass (00-734/1H)
A streamed look is achieved with the use of flush handrail fittings. Our component options ensure simple assembly and flexibility to accommodate any project. Our line of flush handrail fittings feature a 1” long sleeve for added and adhesive coverage.
Fittings are supplied with self-drilling/self tapping hardware.
Material:
- Polished Brass
Wall Thickness:
- .050"
Dimensions:
- W: 3"
- L: 2-1/4"
Estimated Lead time: 3-5 business days before shipment.
Return a 1.5" OD handrail on itself with this three-outlet flush "T" fitting, built for the 180° wrap-around geometry used at handrail end terminations (the return-to-wall detail per ADA 505.7.2). Flush joints, no protruding fitting. Five finishes: polished brass, 304 polished or satin stainless, and 316 polished or satin stainless.
Description
At the end of a handrail run, a rail often has to turn back on itself — the return-to-wall termination detail called for under ADA 505.7.2. This three-outlet flush "T" fitting handles that 180° wrap-around geometry in 1.5" OD handrail, with tubes sliding into each outlet for flush joints and no fitting standing proud along the grip. It's the termination piece across a wide range of stairs and corridors, on one flight or a whole building. Verify the exact geometry with Lavi before ordering. The five finishes cover most settings: polished brass for a traditional rail, 304 stainless polished or satin for a modern interior, and 316 stainless polished or satin where salt or chlorine calls for corrosion resistance. Most ADA-compliant runs need both this termination fitting and the 90° "T" for branching intersections. Note the OD won't interchange with 1.67" or 2" tubing.
