180 degree Flush X Elbow for 1.5 inch O.D. Tubing, Polished Brass (40-736/1H)
A streamed look is achieved with the use of flush handrail fittings. Our component options ensure simple assembly and flexibility to accommodate any project. Our line of flush handrail fittings feature a 1” long sleeve for added and adhesive coverage.
Fittings are supplied with self-drilling/self tapping hardware.
Material:
- Polished Brass
Wall Thickness:
- .050"

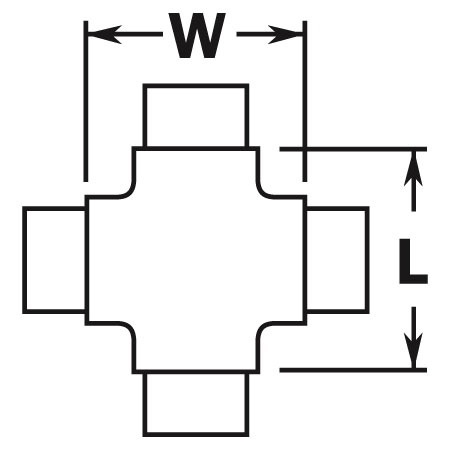

Dimensions:
- W: 3"
- L: 3"
Estimated Lead time: 3-5 business days before shipment.
One handrail passes through unbroken; two perpendicular tubes meet it at the crossing. The 00-736/1H four-outlet "X" keeps a continuous 1.5" OD rail continuous where a side rail crosses — no break in the grip line. For .050"-wall tubing, in 304 Polished, 304 Satin, or Polished Brass to match the run.
Description
Keep a handrail continuous where another rail crosses it. The 736-1H Flush "X" Elbow lets one 1.5" OD handrail run straight through the joint unbroken, 180° end-to-end, while two perpendicular tubes meet at the crossing — the fitting you use where a stair or corridor handrail passes a landing rail or an alcove rail without a break in the grip. It fits 1.5" OD tubing with a.050" wall. Choose from three finishes: 304 Polished Stainless Steel for a bright modern look, 304 Satin for a softer, low-glare surface, or Polished Brass for a warm, traditional rail. It pairs with the matching 1.5" round tubing and fittings in the same line, so a continuous handrail run comes together from parts made to fit each other.
