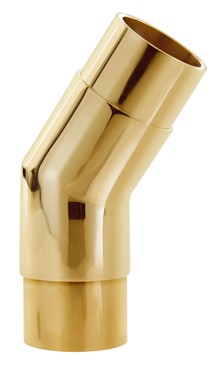

Flush 147 degree Angle Brass for 2" O.D. Tubing (00-730A/2)
A streamed look is achieved with the use of flush handrail fittings. Our component options ensure simple assembly and flexibility to accommodate any project. Our line of flush handrail fittings feature a 1” long sleeve for added and adhesive coverage.
Fittings are supplied with self-drilling/self tapping hardware
Material:
- Polished Brass
Wall Thickness:
- .050"

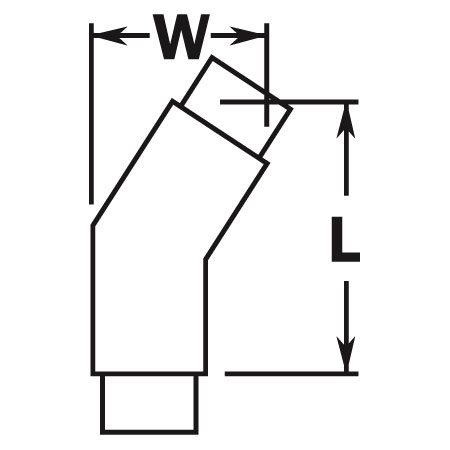

Dimensions:
- W: 2-3/4"
- L: 3-3/4"
Estimated Lead time: 3-5 business days before shipment.
Make a slight direction change in a 2" OD brass handrail at a 147° interior angle — 33° off straight — with a flush joint. It's for gentle, almost-straight bends: an octagonal landing edge, a bay-window extension, or a rail following a curving wall. Not for stair landings. Polished brass, fits.050" wall brass tubing.
Description
A 147° change of direction — only 33° off straight — lets a 2" OD brass handrail trace non-rectangular shapes: an octagonal landing edge, a bay-window extension, a curving heritage wall, a hexagonal gallery. This flush elbow makes that gentle adjustment with a tube sliding into each end and the joint finishing flush; it is a shallow-angle fitting rather than the sharper turn used at a stair landing. Offered in polished brass only, matching the traditional and restoration rails where these softer angles usually appear, and sized for .050" wall brass tubing. The OD won't interchange with the 1.5" version. For a variable on-site angle or a stainless option at this size, see the Flush Adjustable Elbow.
