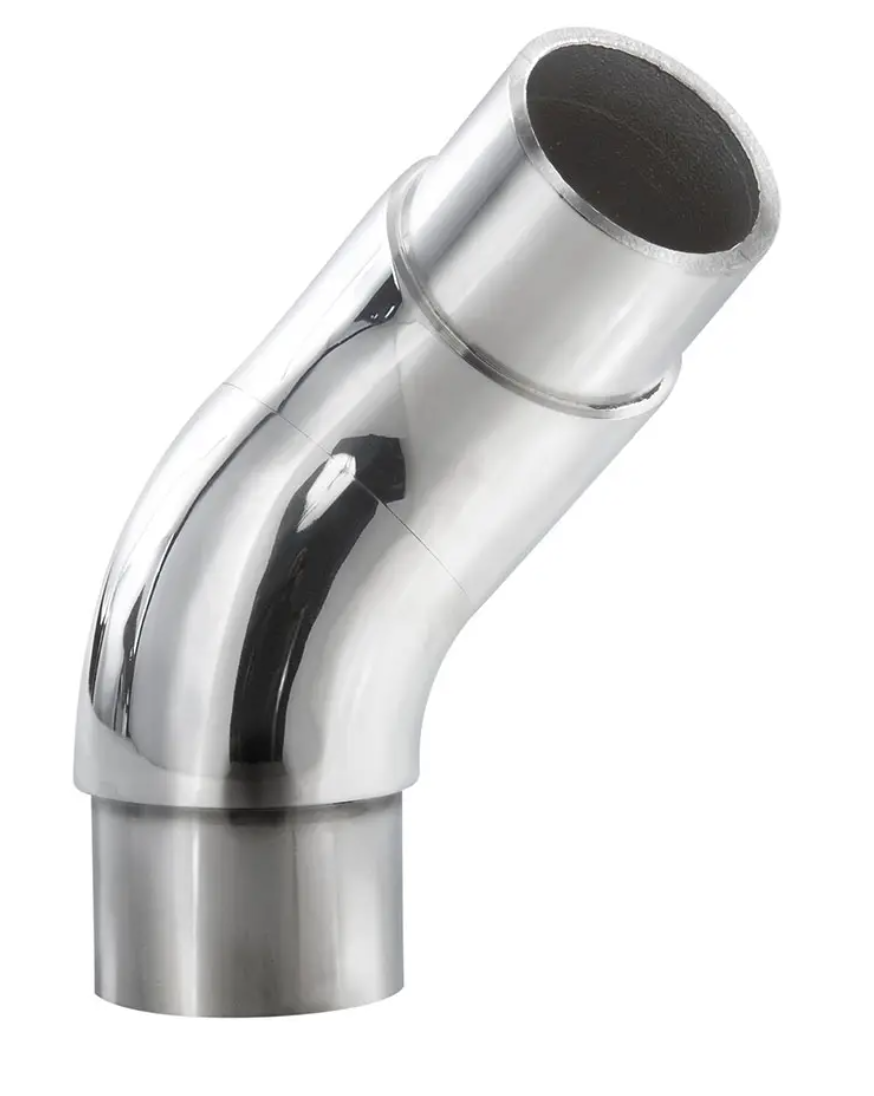

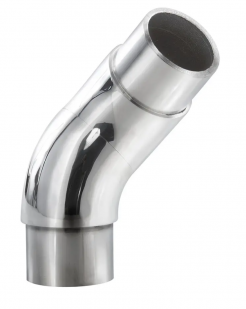

Flush Adjustable Radius Elbow for 1.67 inch O.D. Tubing, 316-Grade Polished Stainless Steel (47-731A/424)
Material:
- 316-Grade Polished Stainless Steel
Estimated Lead: 3-5 Business days before shipment.
Set the angle in the field and keep the grip continuous: this adjustable radius elbow joins two 1.67" OD (42.4mm) tubes anywhere from roughly 85° to 175°, on a smooth curve rather than a sharp break. Refurbishment work against as-built geometry is its home turf. 316 stainless, polished or satin, .080" wall.
Description
This adjustable elbow makes a smooth, curved turn in 1.67" OD (42.4mm) handrail at the exact angle the run requires. The pivot joint sets anywhere from about 85° to 175°, so it matches off-standard angles that don't fit the usual 90°/135°/147°/180° palette — exactly the situation in refurbishment work, where legacy rail angles rarely line up with modern fittings. The radius bend keeps a hand moving continuously around the turn. It's 316 stainless, polished or satin, with a.080" wall for the European rail size, and it holds up to salt air and wash-down. Worth confirming before you order: this is the smooth radius version, not the sharp-angled Flush Adjustable Elbow — same idea, different look at the joint. A stocked adjustable fitting like this saves the cost and weeks of lead time a custom-fabricated bend would take.
