Vertical Flush Elbow for Channel Tubing, 316-Grade Satin Stainless Steel (49-732UV/424)
Material:
- 316-Grade Satin Stainless Steel
Estimated Lead Time: 3-5 business days before shipment

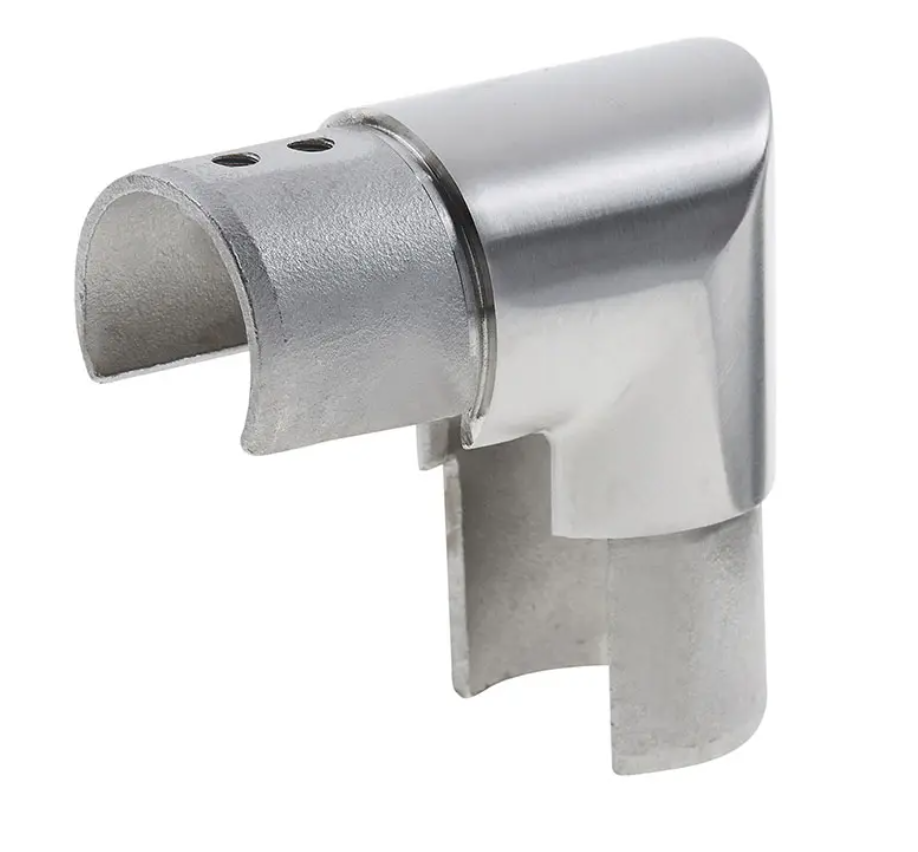

Grade changes shouldn't interrupt the glass: this 90° vertical elbow (49-732UV/424) carries 1.67" OD (42.4mm) channel tubing up or down at a stair landing or level change, keeping the U-channel groove continuous so the glass infill runs unbroken through the turn. 316 Polished or Satin, in finishes matched to the channel tubing line.
Description
Take a glass cap rail up or down where the run changes grade. The 732UV Vertical Flush Elbow bends 1.67" OD (42.4mm) channel tubing through a vertical direction change — a stair landing or a step between levels, typically 30 to 45 degrees — while keeping the U-channel groove continuous through the bend so the glass infill panels carry straight through without a break. It comes in 316 stainless, Polished or Satin, for marine-grade corrosion resistance indoors or out. Use it with the matching horizontal elbow to turn a run at building corners as well as stair landings, and with the channel tubing and splices in the same Glass Cap Rail line, so a multi-level glass railing comes together from one family of parts.
