Angle Collar Satin Stainless Steel for 1.5" O.D. Tubing (44-800/1H)
We offer universal railing connectors either factory assembled into metal posts or as individual components to accommodate any handrail, foot rail, stair railing, or other architectural railing configuration. Available finishes may include polished brass, satin, or chrome plated.
Material:
- 304-Grade Satin Stainless Steel
Wall Thickness:
- .050"

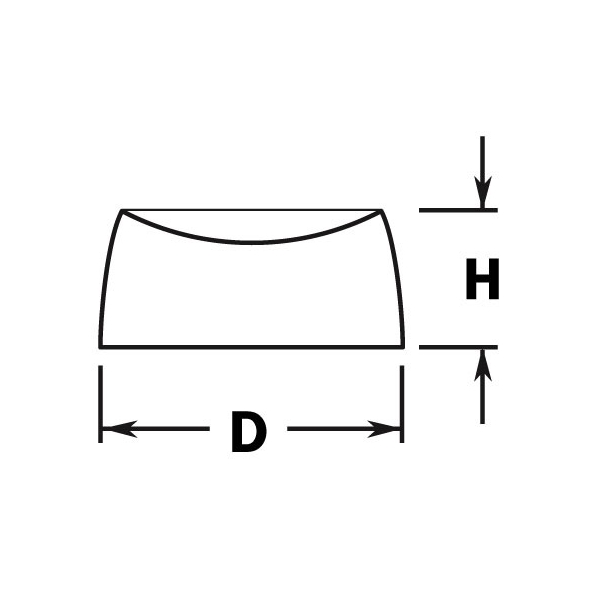

Dimensions:
- D: 1-3/4"
- H: 15/16"
Estimated Lead time: 3-5 business days before shipment.
Join a 1.5" OD railing tube to a ball fitting at an angle the standard outlets don't cover. The Angle Collar makes the odd-angle connection — the piece that lets a sloped stair rail tie into a run of 700-series ball fittings without a custom part. In polished brass, polished 304 stainless, or satin 304 stainless to match the line.
Description
Ball fittings come with fixed outlet angles, but stairs and floors don't always cooperate. When a 1.5" OD run has to meet a ball fitting at an angle the standard outlets don't cover — a stair rail following its own rake, a bar rail turning at an odd corner, a guard rail stepping down toward a landing — the Angle Collar makes the connection at the angle the layout needs. It measures 1-3/4" across and stands 15/16" tall, sized for 1.5" OD, .050"-wall tubing in the same line as the 700-series ball fittings. Choose polished brass, polished 304 stainless steel, or satin 304 stainless steel to match the ball and the run. For flush-style fittings, use the 801 Flush Angle Collar instead.
