Flush 135 degree Angle Polished Stainless Steel fo 1.5" O.D. Tubing (40-730/1H)
A streamed look is achieved with the use of flush handrail fittings. Our component options ensure simple assembly and flexibility to accommodate any project. Our line of flush handrail fittings feature a 1” long sleeve for added and adhesive coverage.
Fittings are supplied with self-drilling/self tapping hardware.
Material:
- 304-Grade Polished Stainless Steel

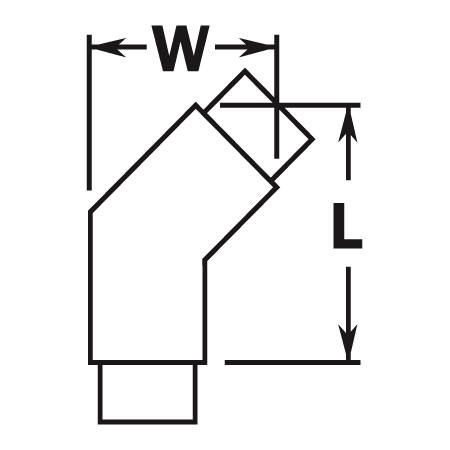

Dimensions:
- W: 2-5/16"
- L: 3"
Estimated Lead time: 3-5 business days before shipment.
Landings with chamfered corners and octagonal stair geometry turn at 135°, not 90° — this flush elbow matches them. It joins 1.5" OD handrail through the wider interior angle with no fitting protruding. Five finishes: polished brass, 304 polished or satin, and 316 polished or satin stainless for coastal, pool, and food-service spots.
Description
Where a handrail bends at a wide 135° interior angle rather than a sharp corner, this flush elbow makes the turn clean. Slip a 1.5" OD tube into each end and the joint sits flush — no protruding fitting to catch a hand. It suits the shallow turns you find at four-step landings, chamfered landing corners, octagonal stairs, and angled guardrail intersections, on one flight or a full run. Pick the finish for the setting: polished brass for a warm traditional rail, 304 stainless polished or satin for a bright or low-glare modern look, or 316 stainless polished or satin where salt, chlorine, or wash-down is a factor — near the coast, at a pool, or in a food-prep area. It fits.050" wall tubing and pairs with the matching 1.5" flush fittings so a whole rail goes together from one line.
